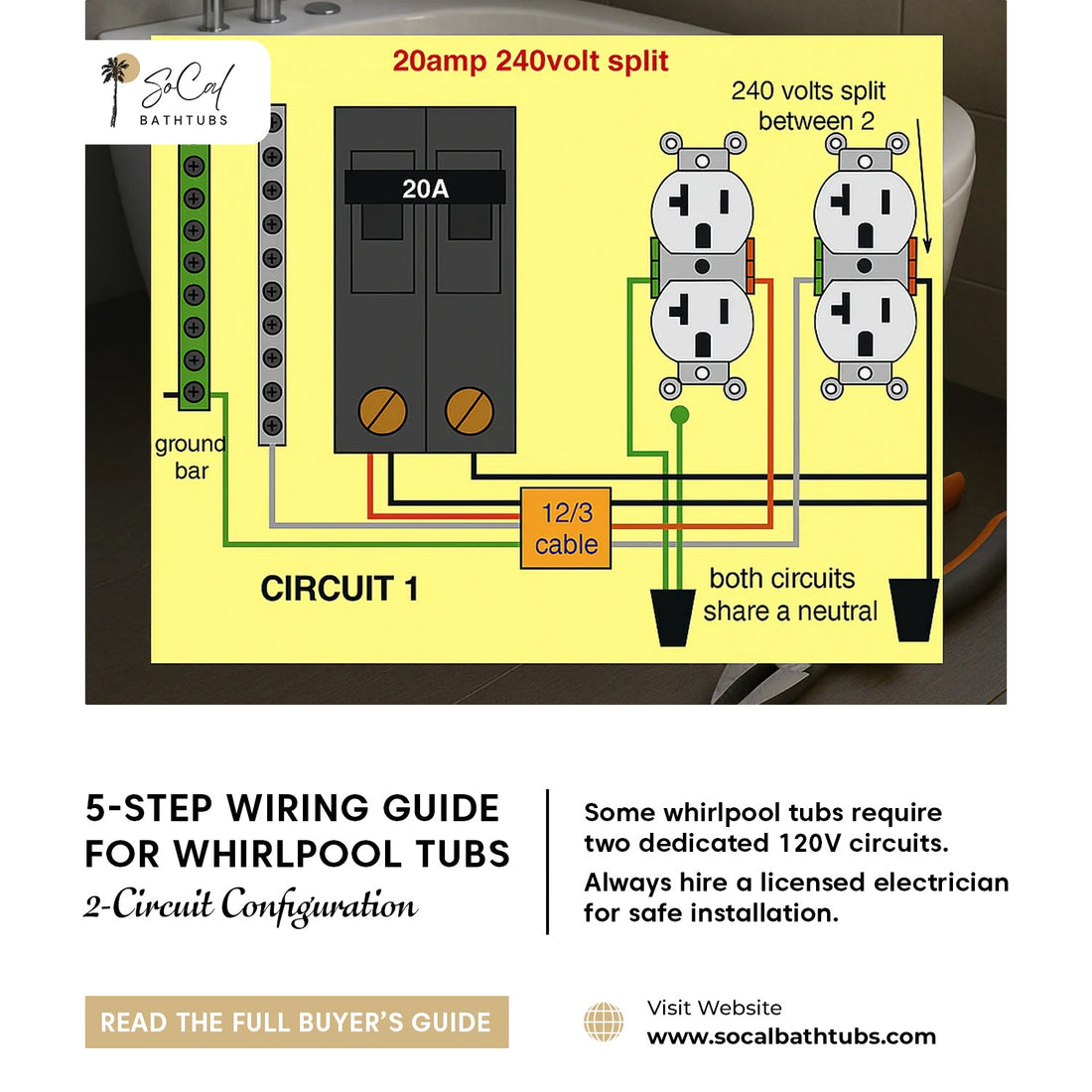

5 Step Wiring Instructions for 2 Circuit Configurations For Whirlpool Tubs

Some high-performance whirlpool bathtubs require a specialized electrical setup consisting of two dedicated 15-20A, 120V circuits. This is typically necessary when a tub features both a high-powered water pump and an independent inline heater.

Follow this 5-step reference guide to understand the layout and installation process for a dual-circuit system.

Step 1: Plan Your Wiring Layout

Before beginning, gather your materials and map out the installation area.

• Materials Needed: Wire nuts, electrical tape, circuit breakers, 14-gauge wire (or 12-gauge for 20A), electrical boxes, GFCI outlets, and staples.

• Safety First: Always turn off the main power supply at the breaker panel before starting any electrical work.

• The Layout: Plan the exact position of your GFCI outlets. While many installers place them on the wall behind the tub, they can also be floor-mounted so the tub sits directly over them, provided they remain accessible for maintenance.

• Secure Boxes: Ensure all boxes are securely attached to the wall studs or the floor joists to prevent movement during the tub installation.

Step 3: Run the Wiring

For a dual-circuit configuration, you must pull two completely independent lines from your home’s electrical panel.

• The Path: Run your 14-gauge wire from the electrical panel to the first junction box.

• Separate Circuits: Do not "daisy chain" these lines. Run two separate wires from the panel—one dedicated to the water pump and one dedicated to the heater (or lighting/air blower).

• Secure the Lines: Use electrical staples to secure the wires to the wall studs every 12-18 inches to keep them protected and organized.

Step 4: Connect GFCI Outlets

Because water and electricity are both present, GFCI (Ground Fault Circuit Interrupter) protection is mandatory for safety and building codes.

• Wiring the Outlets: Carefully connect the ground (copper), neutral (white), and hot (black) wires to the GFCI outlets.

• Manufacturer Specs: Always refer to the specific manufacturer’s instructions for your tub model to ensure the amperage matches the outlet rating.

Step 5: Finalize and Test

Once the wiring is complete, you must verify the integrity of the circuits before the tub is permanently set.

• Circuit Breakers: Install the 15A or 20A circuit breakers into the main panel for each dedicated line.

• Power On: Restore the main power supply and test each outlet to ensure proper operation.

• The GFCI Test: Press the "Test" button on each GFCI outlet to ensure it trips properly, then press "Reset" to restore power.
